Description
ROAD

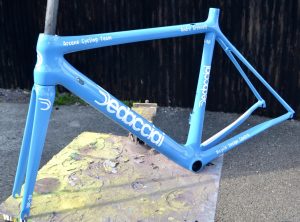

Highest modus carbon fibre IM 30T MRC monocoque frame
• Weight: 950 grams for the M size
• Six sizes: XXS, XS, S, M, L, XL
• Bottom bracket BB86
• Finish: external layer UD
• Seat tube for 27,2 mm ID seat post
• Internal cable routing: top tube and down tube
• Electronic and mechanical system compatible
• Head tube for integrated headset 1” 1/8 top – 1” 1/2 bottom
• Dedacciai compatible and recommended headset: MSS118112
• Dedacciai compatible and recommended Fork: MFF001Z156
• Fork weight: 350 grams (Carbon dropout)
• Compatible hanger: FRCDINTCCHF13
Available in Any Colour

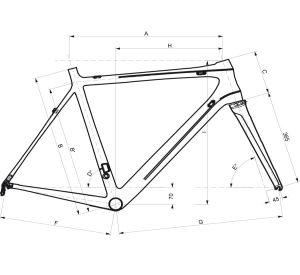

SIZE | A | B | B’ | C | D | E | F | G | H | I |
XXS | 505 | 470 | 410 | 110 | 75° | 70.7° | 408 | 573 | 370 | 504 |
XS | 515 | 490 | 430 | 110 | 74.5° | 71° | 408 | 577 | 375 | 504 |
S | 530 | 520 | 460 | 130 | 74° | 72° | 408 | 579 | 379 | 527 |
M | 545 | 540 | 480 | 150 | 74° | 73° | 408 | 581 | 388 | 548 |
L | 560 | 560 | 500 | 170 | 73.5° | 73° | 408 | 591 | 392 | 567 |
XL | 575 | 580 | 520 | 190 | 73° | 73.2° | 408 | 598 | 396 | 587 |
